Products Introduction
vWanli ultrasonic cutting achieves no friction, no pressure cutting mode.
vIt can cut sticky food such as cream jam smoothly and beautiful without sticking knife
vAutomatic product positioning, Omni-directionalcutting according to customer’sneeds
vThe cutting product can be automatically positioned and slitting according to the pre-entered parameters
Wanlisp4-300K900L3500

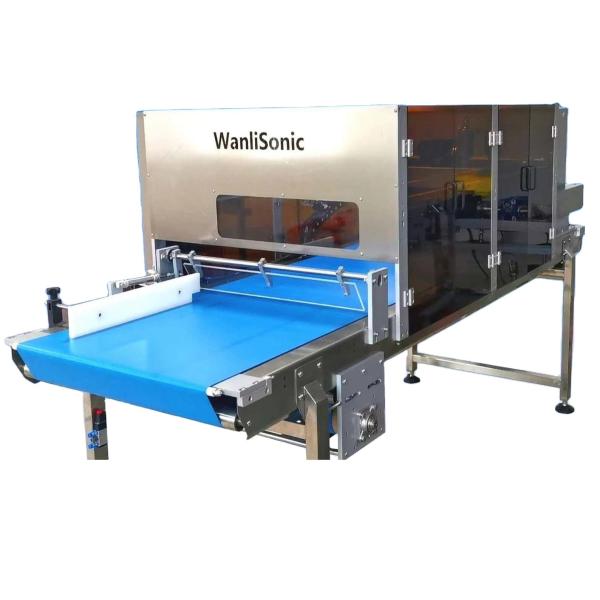

This is an ultrasonic cutting machine for food controlled by 5-axisservo motor system, can be linked to chain slat type tunnel oven, automaticbelt convey andcuttingproductsof600x600mm, and itequippedwith automatic paper removal function（optional）, and security system of security door, frequency ultrasonic scan and fault indicator lamp.
Standard Parameter
Model | Wanlisp4-300K900L3500 |
Dimensions | L3000*W1400*H1550mm |
Weight | Net Wt. 550KGS, Gross Wt.600KGS |
Voltage | 220V, single |
Rated power | 8000W |
Frequency | 50Hz-60Hz |
Ultrasonic Frequency | 20000Hz |
Amplitude | 20%-40% -40%
|
Cross cutting speed | 20-60cuts/Minute; high-speed model:60-180cuts/Minute |
Slit cutting speed | 30-40cuts/Minute; high-speed model:40-100cuts/Minute |
Number of blades | 4 (optional) |
Blade materials | Titanium Alloy |
Bladesize | 300mm/pc (optional) |
Cut type | Square, rectangular, slices |
Maximum cutting size | 400mmx600mm,food cuttingheight up to 80mm, blade up height:100mm |
Material of machine frame | Stainless Steel |
Automatic beltconvey | Yes |
Convey speed | 0-3000mm |
Safety protection system | Security door, frequency ultrasonic scan and fault indicator lamp |
Control System | Five-axis Control System |
Cutting knife control system | Servo motor |
|
|
|
Zhangzhou Wanli Machinery Trade Co., Ltd.
Zhangzhou Wanli Machinery Trade Co., Ltd. is the wholly-owned
subsidiary of Zhangzhou Wanli Machinery Co., Ltd., located in
Dongyuan Industrial Park Zone, Zhangzhou city, Fujian Province,
China, where is famous for the name "King Zone of all kinds of
Food". And we are also a company of integrating R& D, production,
sales, and service of bakery processing machinery and equipment. We
are specializing in the research and manufacturing of high-tech
bakery machinery and ultrasonic food cutting machine, which provide
a new mode of production for bakery companies. For example, Cake
Depositor, Bread and Cake Depanner Machine, Bakery Tray Spreader
Machine, Cake Decorating Machine,ultrasonic cake cutting machineand
so on. Many series of our machines are CE approved to meet safety
requirements.
Wanli Machinery has one spot. That is, during working, its surface
is not easy to carry bacteria. Our company strictly follows the
principle of "Quality First, Reputation First", upholding the tenet
of "winning by quality, gaining honor by honesty. " Wanli machines
have been famous in Chinese markets. We have won a reputation for
providing quality assured machines, customized solutions and
reasonable price. Also we have been exported to many countries. For
example exported to India, Malaysia, Indonesia, Thailand, USA,
Australia, Ireland, Mexico, Colombia etc. Our factory is near
Xiamen Airport. With good reputation, high-end product quality, and
excellent service, we keep our products lasting.
Our company has the best professional sales and technical team, we
provide customers with the best products, good technical support,
and sound after-sales service.
Welcome you come to visit our factory anytime.
